HYDRAULIC STORAGE
Penstock / Wall Thimbles & Sluice Gates (Vanne murale)

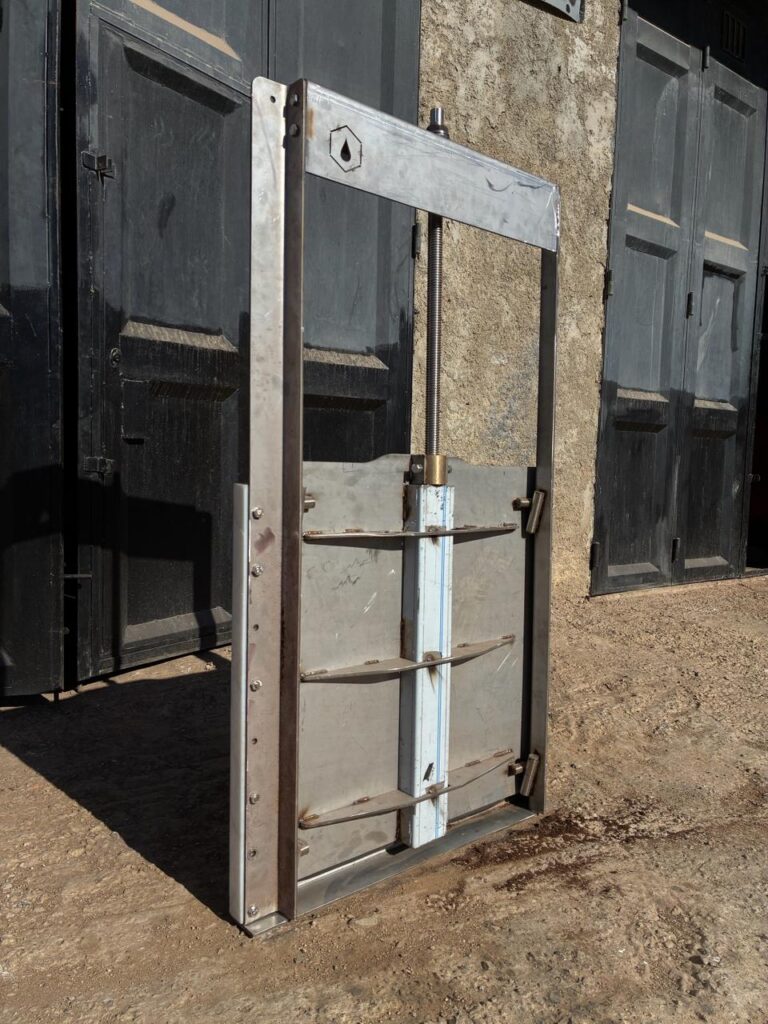

Description: Our wall-mounted sluice gate is a surface-mounted gate, watertight on all four sides. It is widely used in water treatment plants, pumping stations, storm basins, desalination plants, irrigation systems, dams and reservoirs. It is built from welded stainless steel for dependable water isolation and flow control, and it is available in different sizes to suit your project.
Function:
- Available in different sizes, so contact us with the dimensions you need
- Unidirectional as standard
- Welded stainless steel construction (frame, slide gate and operating stem in Inox 304L / 316L)
- Non-rising stem version
- Manual operation (handwheel, with or without gearbox) or pneumatic cylinder (single or double acting)
- Self-cleaning, low-friction HDPE slides, so less operating effort and a longer seal life
- Self-adjusting, wedge-free double-lip EPDM seal, for lower operating torque
- Low leakage rate, designed to DIN 19569-4 Class 5
- Designed to DIN 19569, with AWWA C561 or BS 7775 design also available
- Surface-mounted on the civil structure as standard, or mounted on a metal flange embedded in the wall on request
